Fastjet F560

Fastjet F560 Quality Inkjet Coding

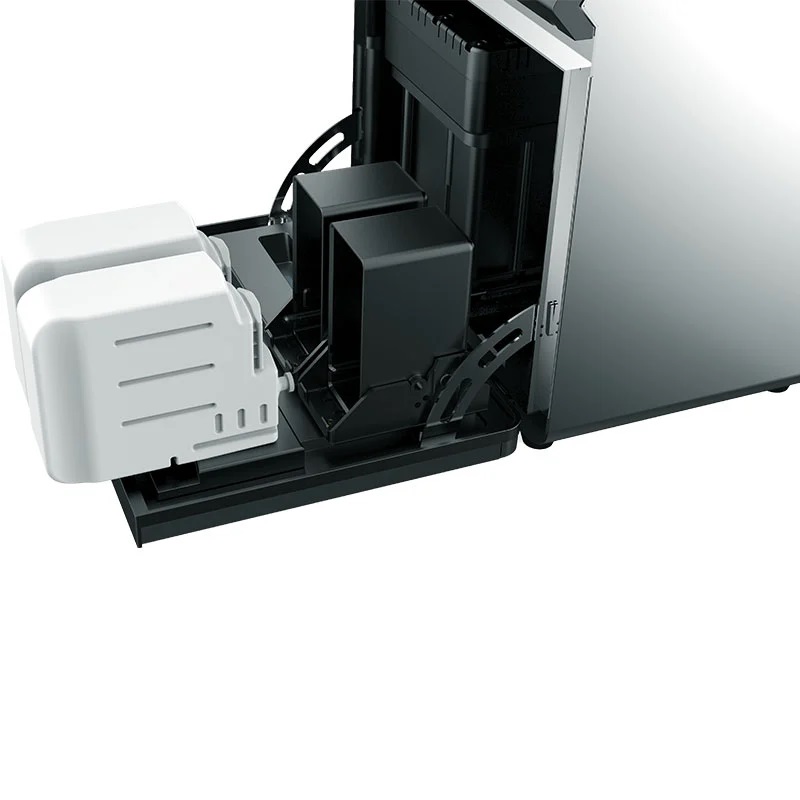

The automatic monitoring system ensures consistent quality printing. In addition to the quality of the code that the printer delivers, it also offers a range of supplies backed by a quality control process that is unique in the industry. The Fastjet F560 offers print data options via network and local scanners and delivers powerful performance at a low cost of ownership. It features a modular, stainless steel, IP55 industrial construction and offers the ability to quickly replace the filter and fluids, keeping your production line up and running.

Product Specifications:

Nozzle: 70/60/5040
Maximum vertical point: 34
Multi-language support: Yes
Traversing printing: Yes
90 degree writing: Yes
IP55 protection: Yes
Special counting Yes
Encoder port: Yes
USB port: Available
Serial port: Yes
Ink recovery pump: Var
Positive air pump: Optional
Solvent flush pump: Yes
High speed model: Var
Hose length Lenght: 2700mm Diameter: 21mm Bending radius: 150mm
Font height: 1.2-15 mm
Writing speed 320 m/meter
Optimum printing distance: Height 1.2-15 mm
Input system: Standard American Keboard WYSIWYG
Fonts: 5×5, 7×5, 9×7, 11×9, 16×11, 19×14, 24×16, 32×24
Special printing options: Bar code, QR code, Logos, Clock, Counter, Shift, etc.
Net weight 27 kg
Package weight 45 kg

Ambient Conditions and Power Supply:

Operating temperature: 5 45 Deg C
General power supply: 120-150 W

Other Features:

High performance, simple operation and minimal downtime
Low thinner consumption, affordable ink and thinner prices
Up to 5 lines of coding. QR code, barcode, logo etc. variables standard
High resistance to dust, water, moisture with IP55 protection factor
